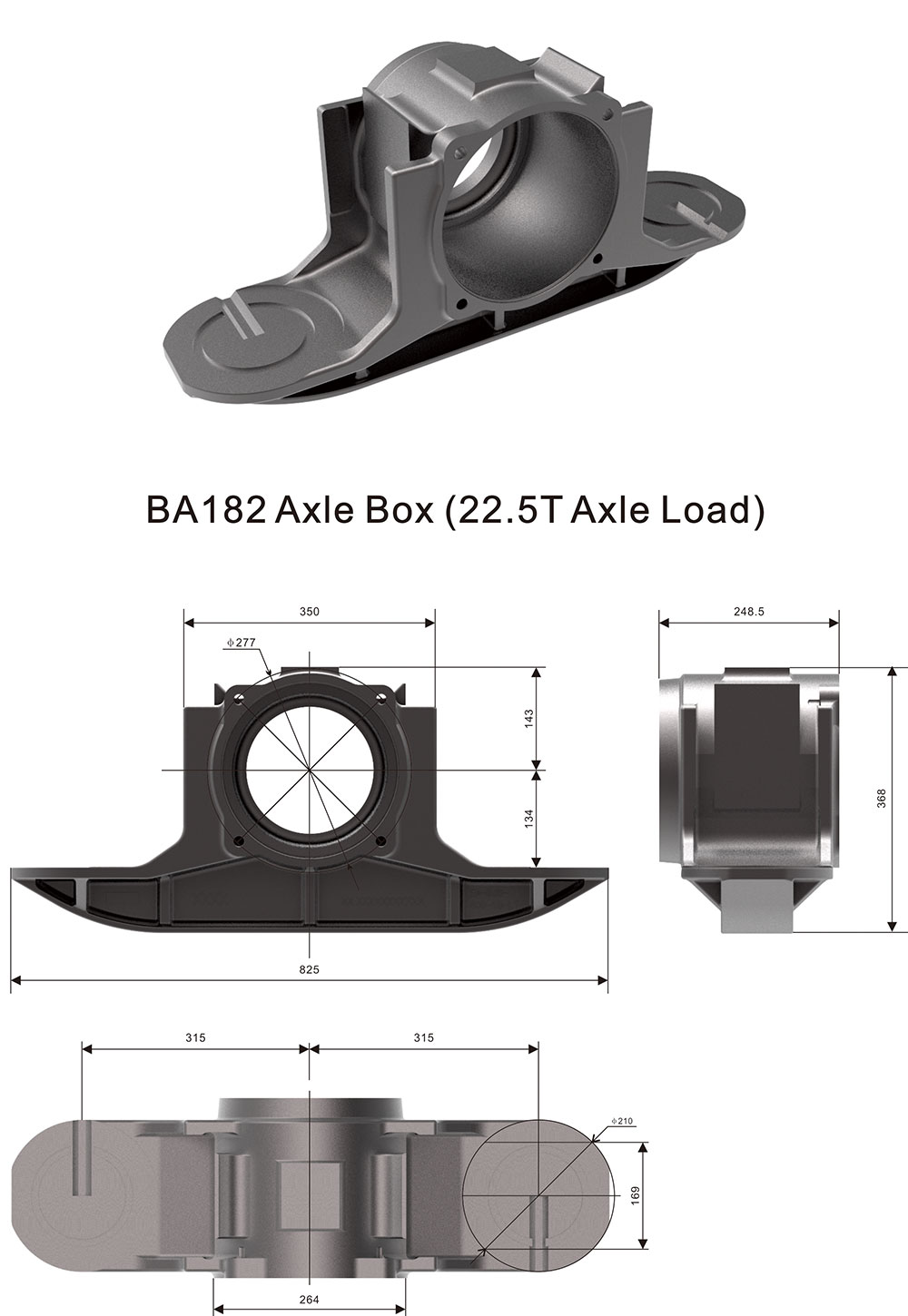

BA182 Axlebox



BA182 Axlebox (Axle Box) is mainly applied for 22.5t axle load Y25 series bogies, which are standard freight wagon bogies in West Europe Railway.

BA182 Axlebox(Axle Box) is mounted on axle journal to connect wheelset and bogie frame. The Axlebox function is to transfer the weight of wagon body and the load to wheel and axle, to lubricate the axle journal, to reduce the friction, and to reduce the train running resistance. Coordinated by Lenore shock absorber, the rolling of wheels is transferred into the frame and wagon’s horizontal movement along the rails length.

BA182 Axlebox is made of nodular cast iron according to EN standards. The BA182 Axlebox is manufactured, processed and inspected according to EN standards. Railteco are able to deliver quality test reports according to customer requirements and related standards.

Main Parameters:

ProductModelMaterialStandardProcessApplicationWeight(kg)(L×W×H)mm
AxleboxBA182EN-GJS-400-18-LTEN1563Casting22.5t axle load   Y25 bogies series65865×248.5×368
