Rail Fastening System



A rail fastening system is used to fix rails to railway sleeper or railroad ties. The selection of a fastening system must be made with utmost care for rail road safety.

Railteco Source is able to provide various types of fastenings systems applied for railroad with concrete sleepers, wooden sleepers, and steel sleepers. Our rails fastenings systems include E type, SKL series, W series, Nabla series, KPO series and etc.

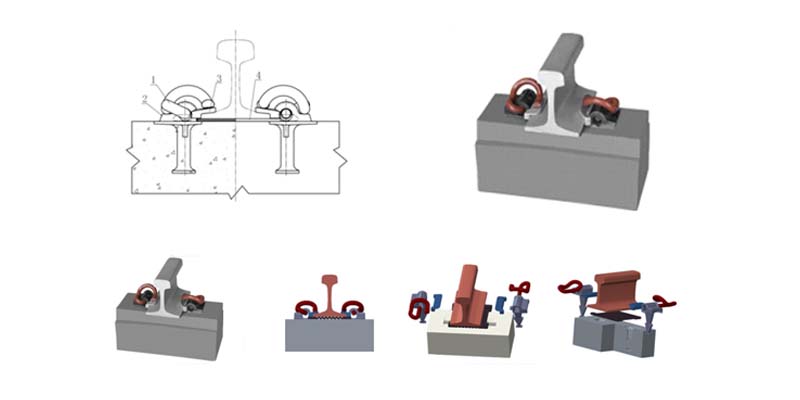

E Type Anti-Theft Rail Fastening System

E Type Anti-Theft Rail Fastening System is applicable for railroad with concrete sleepers, straight line or curve line with radius≥350m and ballast track. It is a lightweight and low cost rail fastening product.

Main Features:

1.The E Type Fastening system is with long durability.

2.11KN toe load provide reliable creep resistance, keep track gauge and track level.

3. Moderate vertical and longitudinal static stiffness, less maintenance after construction.

4. Electric resistance

5. Equipped with hidden anti-theft device.

Components of E Type Fastening System:

S/NComponentsQty per SetRaw MaterialSizeRemarks
1E-Clip2Spring   Steel(60Si2MnA, 60Si2CrA)Dia. 16mm,18mm   or 20mmHardness:   44-48HRC
(E1809, E2006,E2007,E2009,etc)Fatigue life: 5   million cycles without breaking

Standard:   DIN17221, BS970, GB/T1222
2Cast In Shoulder2Cast   Iron(QT500-7,QT450-10)For UIC54,   UIC60, 115RE,/
3Insulator2Reinforced   Nylon 66 (PA66)BS80lbs,   BS100lbs, 50kg rail,/
4Rail pad1HDPE, Rubber or   EVA60kg rail, etc./

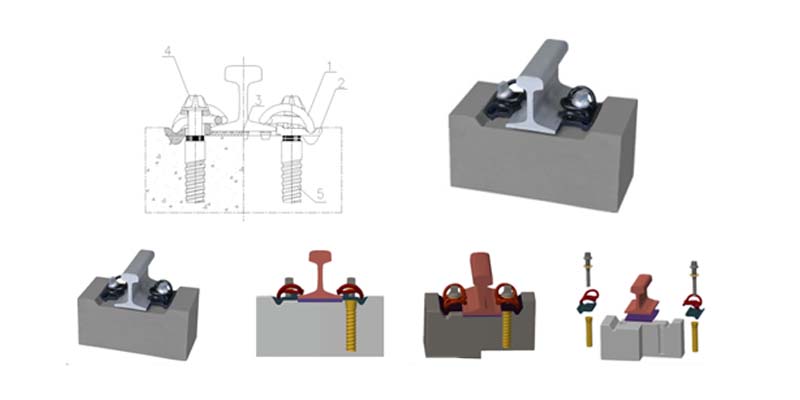

SKL Rail Fastening System

SKL Rail Fastening System is applicable for Railroad with concrete sleeper and ballast track.

Main Features:

1. Resistance of rail creeping, keep track gauge and track level.

2. Electronic resistance.

3. Moderate Vertical and longitudinal static stiffness

4. Reduce the impact of rail to the ballast.

5. Less maintenance after construction.

Components of SKL Rail Fastening System:

S/NComponentsQty per SetRaw MaterialSizeRemarks
1SKL   Rail Clip2Spring   Steel(60Si2CrA, 60Si2CrA, 38Si7)Skl1,Skl3,   Skl12,Skl14Hardness:42-47HRC
Fatigue: 5 million cycles without breaking
Standard: DIN17221, GB/T1222
2Insulator2Reinforced   Nylon 66

3Rail Pad1EVA, or rubberCustomizedCustomized
4Screw Spike   & Washer2Spring SteelM24×150mmStandard:ISO898-1,   UIC864-1, NF F500-50
5Insulated   bushing2Reinforced   Nylon 66 (PA66)For different   sizes of screw spikeEmbedded in the   concrete sleepers
