Metro Handles

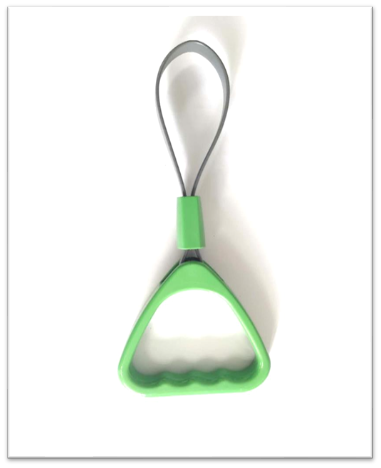

Metro Handle (A)

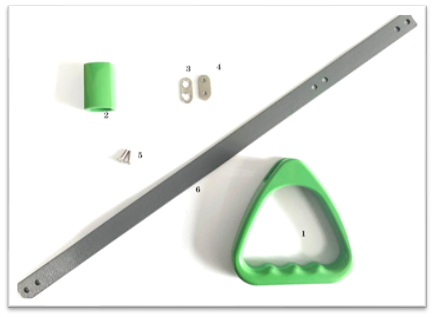

S/N

Part Name

Material

1

Grasp Handle

PC

2

Sleeve

PC

3

Clamp   Block 1

06Cr19Ni10

4

Clamp Block 2

06Cr19Ni10

5

Flush Headed Bolt

A2-70

6

Strap

PU

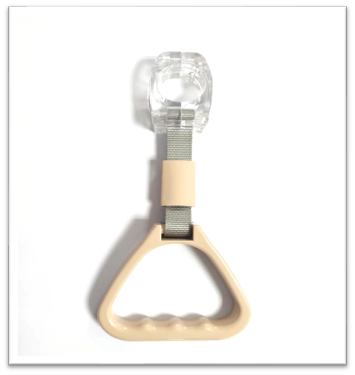

Metro Handle (B)

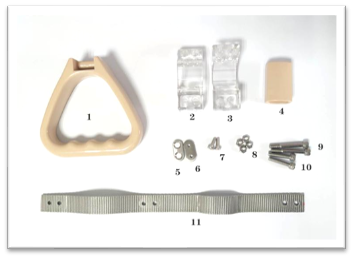

S/N

Part Name

Material

1

Grasp Handle

PC

2

Mount Seat 1

PC

3

Mount Seat 2

PC

4

Sleeve

PC

5

Clamp Block 1

06Cr19Ni10

6

Clamp Block 2

06Cr19Ni10

7

Flush Headed Bolt

A2-70

8

Hex Nut

A2-70

9

Half  Thread Bolt

A2-70

10

Full   Thread Bolt

A2-70

11

Strap

PU

Metro Handle (C)

1.Grasp handle/ Pull ring

Made of high-strength ABS engineering plastic,

The main shape conforms to the principle of ergonomics, and can fit the palm of the human body comfortably and withstand the pulling force of the human body.

2.Connect joint

It is composed of a single stainless steel spherical joint and can rotate around a certain angle in the vertical direction to transmit the pulling force of the human body to the horizontal armrest.


3.Fixed sleeve

It is composed of two stainless steel semi-circles, which are connected with stainless steel bolts to fix the pull ring to the horizontal armrest.
